HTC Vive VR Headset
Lens Review & QR Code

Sites in VR Test LAB



Right Eye View

View from the right lens of the HTC Vive viewer.

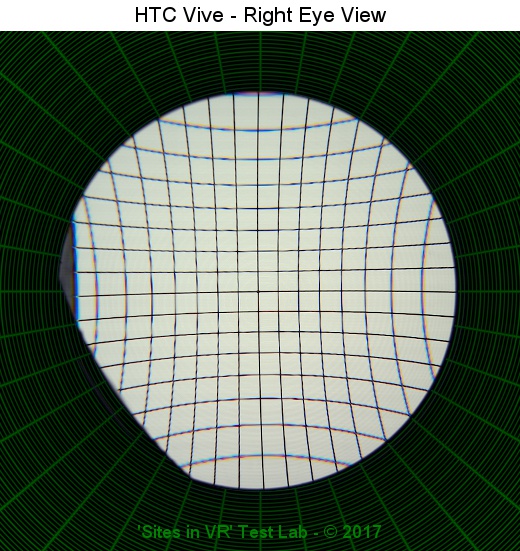

This image shows the right eye view of the HTC Vive taken with a calibrated camera at a typical eye-to-lens distance (eye relief) of 16 millimeters. The no-parallax point of the camera is set at 19 millimeters (same distance as the eye pupil that is 3 millimeters inside the eye). The image is shown in fish-eye projection to closely simulate what the eye sees. The test image consists of lines that are straight in fish-eye projection such that any distortion can be contributed to the lens of the viewer.

Field of View

Field of view of the HTC Vive viewer.

This image shows the field-of-view test from the camera image that is taken at an eye-to-lens distance (eye relief) of 16 millimeters. The IPD (interpupillary distance) was set to 63.0 millimeters. This is the same as the distance between the optical center of the left and the right lens. The screen size was 5.7 inch. The measured total field of view of HTC Vive was 99.2 degrees. The stereoscopic field of view was 94.7 degrees. The field-of-view may differ for other eye-to-lens distances!

NOTE: The field-of-view of non-circular views is calculated as the circular area that is equal to the area that the view covers in fish-eye projection.

Angular Magnification

Angular magnification measurement of the HTC Vive viewer.

This chart shows the angular magnification of HTC Vive at various viewing angles. The higher the magnification, the shorter the distance between the lens and the screen gets. The shorter the distance of the screen, the bigger the screen will look. The software that renders the environment has to know the exact magnification such that the objects are shown at the correct size.

Distortion

Distortion measurement of the HTC Vive viewer.

This chart shows the lens distortion of HTC Vive at various eye-to-lens distances (eye relief). The distortion curve is used to produce an image that is distorted in the opposite direction such that the final image that the eye sees looks undistorted.

Chromatic Aberration

Chromatic aberration measurement of the HTC Vive viewer.

This chart shows the measured color shift of the lenses of HTC Vive.



Compare the field of view of HTC Vive to other headsets
